Metal Chip Briquetting Machine processes materials from CNC machining centers, precision hardware plants, Swiss-type machine tools, CNC lathes, and hardware parts processing. Materials include aluminum, steel, cast iron, stainless steel, copper, zinc, magnesium, titanium, grinding putty, castings, sawing and milling waste, powdered special alloys, slag compounds, battery waste, mineral powder, shredded paper, wood chips, and plastic powder. Suitable for both flaky and granular materials.

Hydraulic briquetting machines are high-pressure machines primarily for pressing metal shavings/powders. They are also used for pressing animal licks. By changing molds, they can be used in metallurgy, refractory materials, machinery, and chemicals. The machine uses hydraulic transmission and pressing methods to produce different specifications and models.

Why Choose a Hydraulic Briquetting Machine?

1. High Pressure

Wide pressure range with maximum up to 630 tons. Highly compacted briquettes save significant space. For example, iron powder bulk density: cast iron scrap 2.7 g/cm³, short steel scrap 0.9 g/cm³, long steel scrap 0.1 g/cm³. Final briquette density can reach approximately 5-6 g/cm³ (aluminum 2-2.5 g/cm³, copper 6.5-7 g/cm³). This reduces scrap volume, storage, and processing costs while increasing revenue and profitability.

2. Easy Demolding

Direct ejection from the side cylinder allows for customized briquette sizes.

3. Coolant Recovery System

Separates and collects waste oil and emulsion from metal cutting, saving up to 90% on coolant.

4. High-Purity Metal Scrap Briquetting

Hydraulically driven compression without binders maintains metal quality and purity, maximizing value.

5. PLC Control System

Automatically controls the briquetting process: feeding and discharging. Manual mode available for non-continuous feeding.

6. Easy Customization

Custom accessories including valves and oil pumps. Cooling system adjustable according to ambient temperature.

Materials:

Metals: Aluminum, brass, copper, steel, magnesium, cast iron, stainless steel, lead, sponge iron, etc.

Others: Sawdust, peat, biomass, salt, coke, ceramics, graphite, various slags and dusts.

Material Requirements:

Less than 40 mm. Smaller particles produce higher-density, higher-quality briquettes.

No moisture content requirement.

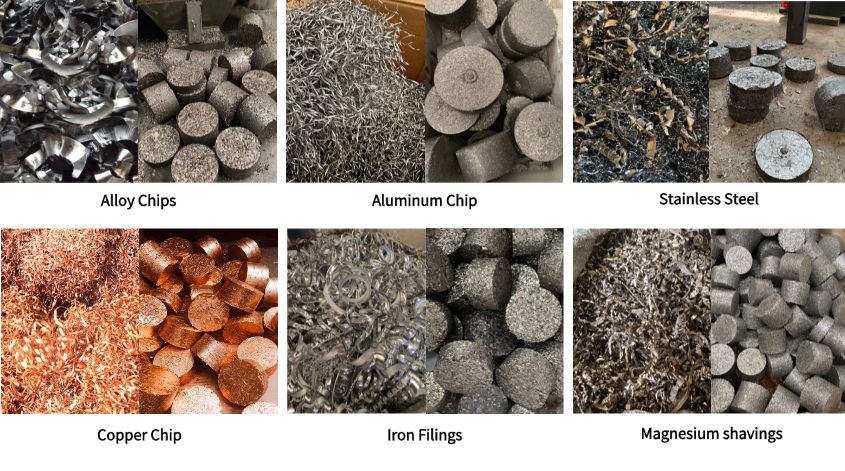

Metal Brick Display

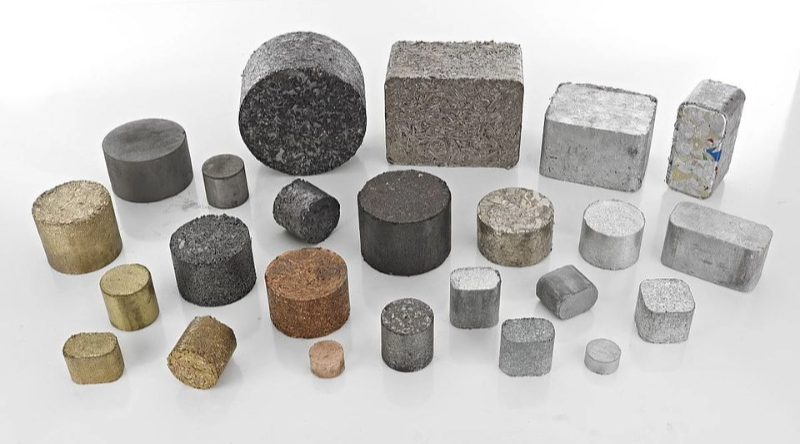

Shapes and Sizes

Common shapes: cylindrical, cubic, rectangular. Custom shapes and patterns available.

Sizes: Round briquettes diameter from 80-200 mm, depending on model and mold.

Product Details

	PLC Touch Screen Automated programs for easy operation. Touch screen control with emergency stop button.
	Auger Infeed Prevents arching or material punching. Timed feeding control improves uniformity.
	Coolant Collecting Bin Recovers coolant, saves costs, reduces pollution, and enables resource reuse.
	Discharging Port Sloped design increases discharge speed. Mesh design allows cutting oil recovery.

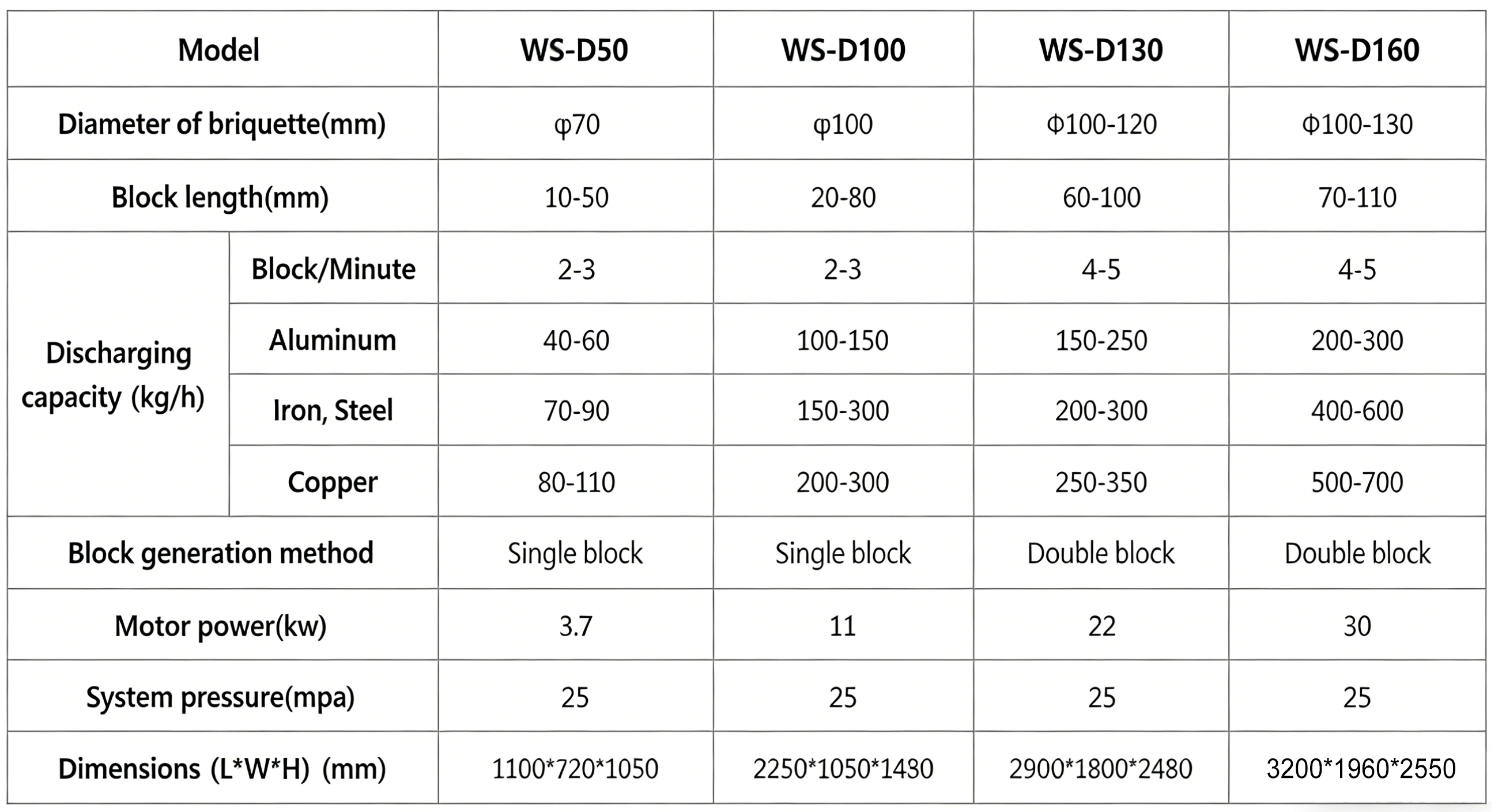

Technical Parameters

On-site Collaboration Photos with Customers

Hydraulic Briquette Production Line

High pressure allows briquette production without binders. Additional machines like conveyors, shredders, or magnetic separators can be added for a more automated plant.
